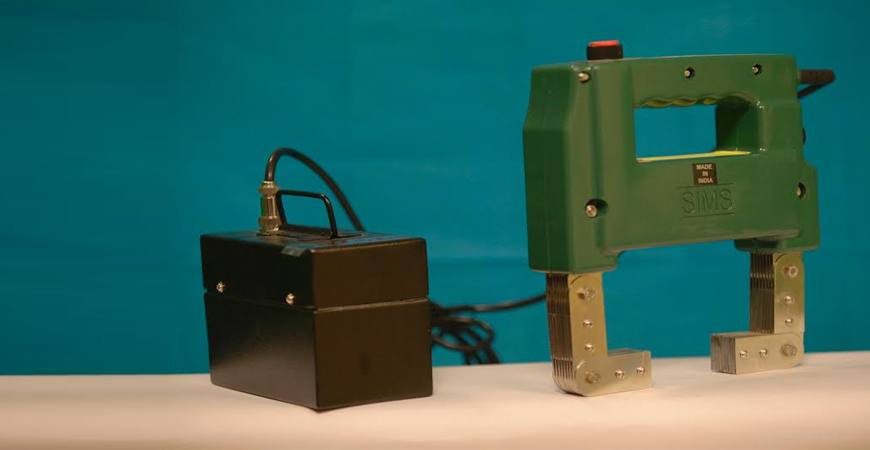

Its tiny battery pack offers a full 8-hour shift of inspection power, making it suitable for field and remote inspection. Legs with articulation and double joints. Construction is sealed, resilient, and lightweight.
Technical Specifications
- ELECTRICAL:
- The SIMS Y-DC is designed for use on 12V DC, 7AH Rechargeable Battery.
- CONTROLS ELECTRONIC MANUAL:
-
- 1. Momentary “Push-to-ON” switches
- 2. Power ON / OFF Switch
- 3. Mag ON indication LED
- 4. Over load protection
- MAX CONTINUOUS DUTY CYCLE:
- 2 min “ON” and 4 min “OFF” at max output.
- RECOMMENDED DUTY CYCLE:
- 50% at max output
- MAGNETIC FIELD:
- Constant Level
- DC:
- Strong FWDC Magnetic Field Strength
- POLES ADJUSTMENT:
- 0 – 300mm
- FULL FORCE:
- Approximately 19 Kg max at 100mm Pole spacing
- YOKE WEIGHT:
- 4 kg (approx. without case)
- BATTERY WEIGHT:
- 2.5 kg (approx. without case)
- SPECIFICATION COMPLIANCE:
- ASTM E-1444 -05
