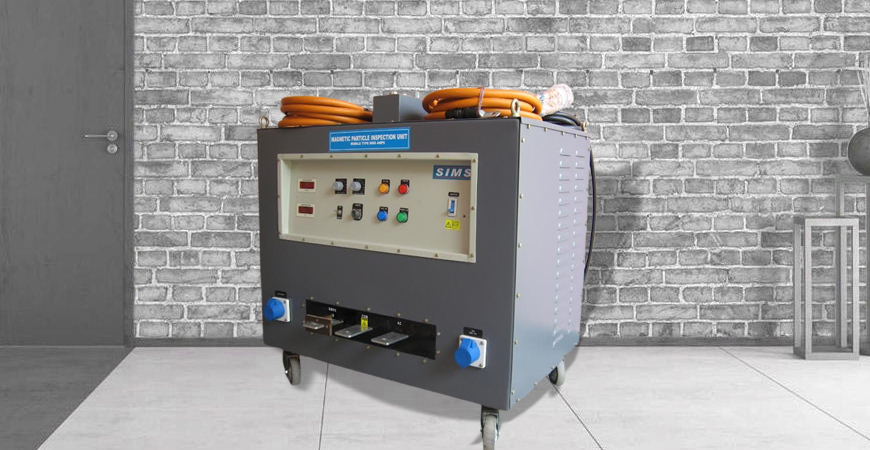

SIMS - MU is a mobile type MPI Unit with a versatile design capable of providing endlessly variable step-less magnetizing current regulation via thyristor technology. It generates both AC and HWDC currents. This can be used for both Prod and Cable Wrap procedures that require remote control operation. Push-button demagnetization facility. The SIMS-MU rolls easily on the heavy duty casters. It is particularly beneficial for larger work items that cannot be transported to MPI equipment. It can be used for non-fluorescent and fluorescent examinations using both dry and wet procedures.
Technical Specifications
| Specs | SIMS MU |
|---|---|
|
Input Supply: Volt Frequency Phase |
415 V 50 Hz 2 Phase |
| Max. Output Current | 3000 - 8000 Amps |
| Current Drawn | 60 - 200 Amps |
| Open Circuit Voltage | 12 - 18 V |
| Net Weight | 150-250 Kg (approx.) |
| Duty Cycle | 1 min ON & 1 min OFF at max rating as per manual |
| Class of Insulation | ‘F’ Class |
| Current Control | Thyristor (Step-less) |
| Auxiliary Supply (optional) | 230V AC – 5A – Single Phase |
| Demagnetization | AC Decay Demag |
| Dimensions (L x W x H) mm |
750 x 550 x 550 to 950 x 650 x 750 (approx) |
| Safety Features | Over Load Protection & Thermal Cut Off |
Salient Features
- Microcontroller based semi automatic machine
- Infinitely variable current control by thyristors
- Available in 3000, 4000, 6000 & 8000 Amps ratings
- LED Digital display of Current
- AC & HWDC Current Outputs for surface & subsurface defect identification
- Demagnetization facility with push button
- Remote control operation with pendant box
- Inbuilt cooling fan
- High magnetic field, using heavy duty copper cable
- Can be used for Prods & Coil Wrap Methods
- Fitted with heavy duty casters for easy mobility
