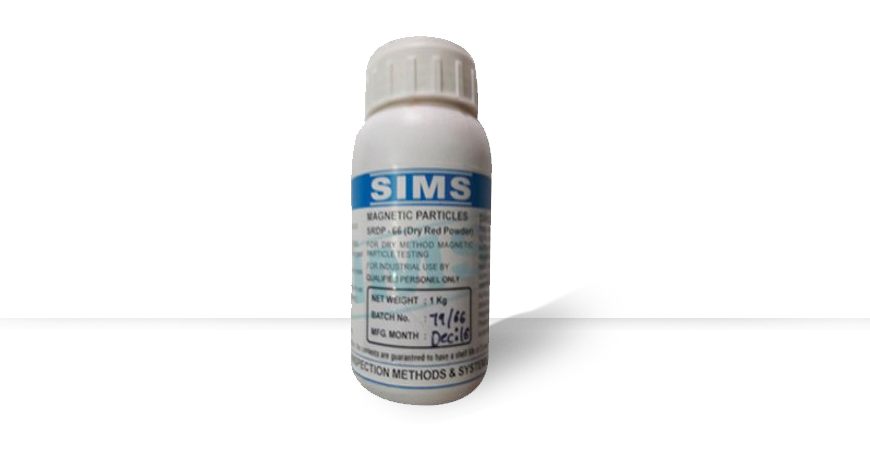

Dry Red, Black, and Grey Colored Powders to be used as supplied for Inspection in daylight, and to be applied to the component surface by spraying or dusting for crack identification using the Magnetic Particle Inspection Method.
Technical Details:
- • Color : Red, Black, and Grey
- • Net Content: 1 Kg.
- • Weight : 1040 gm ( approximate) per Bottle
- • Recommended Concentration : Use as supplied
Salient Features
- Chemical Nature: Non hazardous, hazardous, Non-Toxic, Non-Corrosive.
- Shelf Life: The product will be suitable for its designated use till two (2) years from the date of manufacture, if stored well, and in packed condition as supplied.
- Sensitivity on Keto’s Tool Steel 1400Amp HWDC: Number of Steel Ring, as per ASTM E 1444 Table No.X1.2, for 1400Amp holes indicated is 6.( Required : 4 holes minimum)
Compliance Standard:
- • ASTM E-709 : Standard Guide For Magnetic Particle Testing
- • ASTM E-1444 : Standard Practice For Magnetic Particle Testing
Desirable Recommendations:
- • Refer standard procedure before use.
- • Component surface should be pre-cleaned and free from oil / grease etc. at the time of use.
- • Dry powder should be applied by Spraying; dusting directly on to the surface of the component.
- • The Inspection should be carried out in well-illuminated area with minimum White Light intensity 1076 Lux at 15 inches from source.
- • Replace the lid after every use.
For Storage:
- • Store in Dry, Cool, Shaded Area and at temperature less than 50ºC.
- • Always store can vertically.
Safety:
- • No special precaution is necessary.
