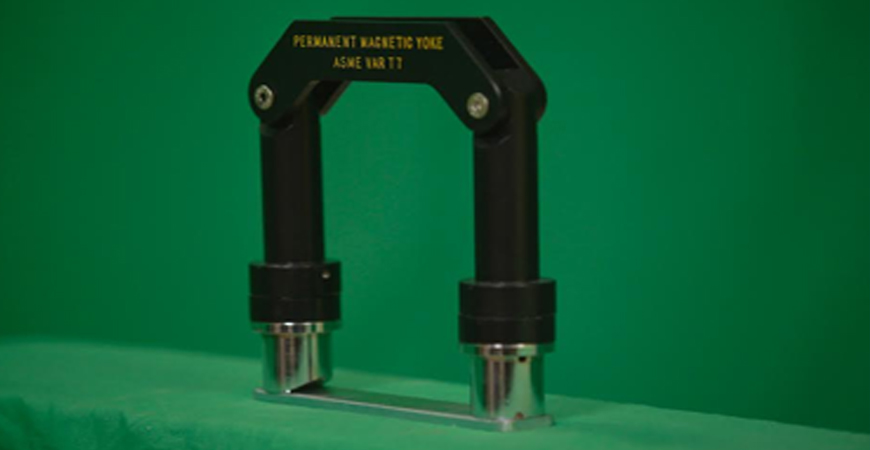

SIMS-PY Magnetic Yoke is versatile portable equipment for Magnetic Particle Inspection. The unit has a rugged, compact, hand, light weight construction with a molded handle and wear resistant furnish. It provides Magnetic field for surface and sub-surface (slightly) flaw detection in Ferro-magnetic materials. Legs are provided for adjustment of inter pole distance from 50-300 mm, to suit differing component contour and is safe for operators for continuous inspection. It can be used for Inspection of welded joints as well.
Technical Specifications
- Pole Distance:
- 50 to 300 mm
- Yoke Weight:
- 2.2 kgs (approx)
Salient Features
- Portable equipment for magnetic particle inspection.
- Can be used in highly safety critical areas such as inflammable materials.
- Legs contour easily to any shape to assure good contract.
- Handy and Light Weight, safe for Operators.
- Strong and rugged construction.
- Built for standard and continuous inspection.
- Can be used for inspection of weld joints also.
- Lifting Capacity - 20 Kgs. max at 150 mm pole spacing.
