Ultraviolet Light

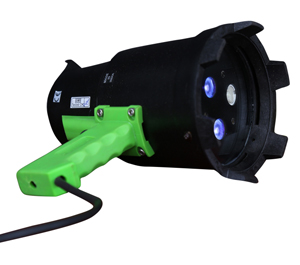

Ultraviolet Light UV 100FL

SIMS – UV 100FL with its tough aluminum housing , is designed for rugged use. It gives optimum performance. The safety bezel prevents accidental damage to the Protection Glass and LEDs. A silent fan for force cooling is provided to keep the housing and handle cool. It has a comfortable grip and concealed cable connection.

TECHNICAL SPECIFICATIONS

  • UV Intensity: >7000μw/cm2 @ distance of 15 inch (38cm)
  • UV Coverage Area: Ø8 inch (200mm) @ distance of 15 inch (38cm)
  • Wavelength Peak: 365nm
  • Power Supply: 230VAC / 50Hz, 1Ph, ±10%
  • Power Consumption: 20W
  • White Light Part of UVA: < 20Lux
  • Working Temperature: 5℃ – 30 ℃
  • Storage Temperature: -5℃ – 50 ℃(0-95%RH)
  • Dimensions: Cone Shape Light Shade 280mm (L) x Front 155mm x Back 89mm
  • Weight: 1.4Kg / 3.0 lbs (Approx)

UNIQUE FEATURES:

  • • LED Operation with Long Operation Life (No Warm-up time).
  • • With 2 UV LED’s and 1 White Light LED- Light and Compact.
  • • Single Selector Switch for Ultraviolet & White Light.
  • • Meets UV and White Light inspection criteria for NDT Application.
  • • High UV Output.
  • • Low Power Consumption.
  • • Built in Heavy Duty Cooling Fan for cool touch in working.
  • • One Year Warranty for all kind of manufacturing defects.
  • • 50 Thousand Working hours for LEDs.
  • • Meets or Surpasses ASTM – E 709 Standards.
Ultraviolet Light manufacturers in india

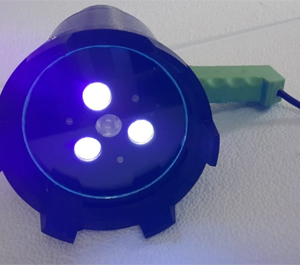

Ultraviolet Light UV 100FLH

SIMS – UV 100FLH with its tough aluminum housing, is designed for rugged use. It gives optimum performance. The safety bezel prevents accidental damage to the Protection Glass and LEDs. A silent fan for force cooling is provided to keep the housing and handle cool. It has a comfortable grip and concealed cable connection.

TECHNICAL SPECIFICATIONS

  • UV Intensity: >10000μw/cm2 @ distance of 15 inch (38cm)
  • UV Coverage Area: Ø10 inch (254mm) @ distance of 15 inch (38cm)
  • Wavelength Peak: 365nm
  • Power Supply: 230VAC / 50Hz, 1Ph, ±10%
  • Power Consumption: 33W
  • White Light Part of UVA: < 20Lux
  • Working Temperature: 5℃ – 40℃
  • Storage Temperature: -5℃ – 50℃(0-95%RH)
  • Dimensions: Cone Shape Light Shade 280mm (L) x Front 155mm x Back 89mm
  • Weight: 1.4Kg / 3.0 lbs (Approx)

UNIQUE FEATURES:

  • • LED Operation with Long Operation Life (No Warm-up time).
  • • With 2 UV LED’s and 1 White Light LED- Light and Compact.
  • • Single Selector Switch for Ultraviolet & White Light.
  • • Meets UV and White Light inspection criteria for NDT Application.
  • • High UV Output.
  • • Low Power Consumption.
  • • Built in Heavy Duty Cooling Fan for cool touch in working.
  • • One Year Warranty for all kind of manufacturing defects.
  • • 50 Thousand Working hours for LEDs.
  • • Meets or Surpasses ASTM – E 709 Standards.
Ultraviolet Light manufacturers in india

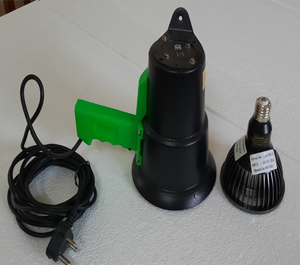

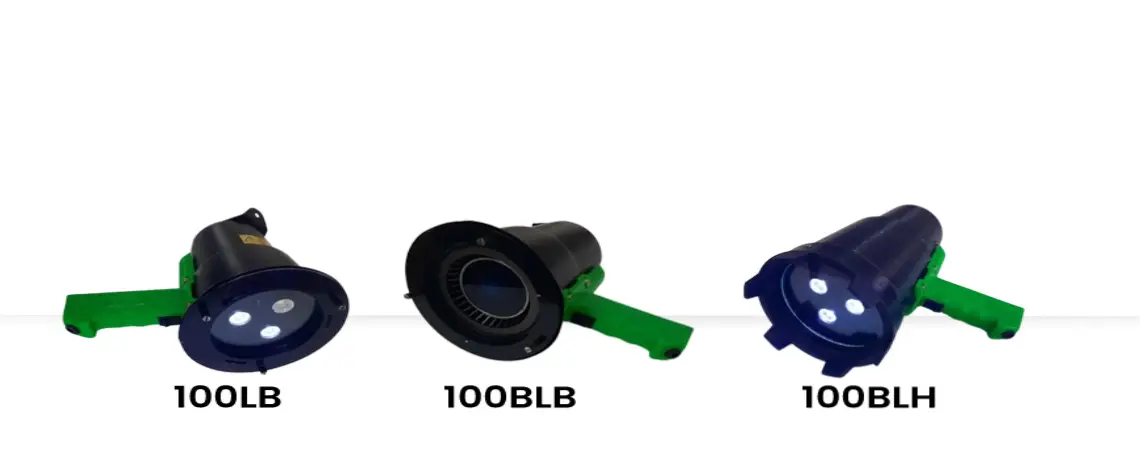

UV Light 100 LB

Mains Operated Hand Held UV Light with Led Bulb

Ultraviolet Light manufacturers in india

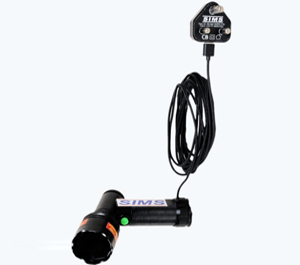

UV Light 100 LG

Mains cum Battery Operated Gun Type UV Led Torch with External Back Up & Power Adaptor

Ultraviolet Light manufacturers in india

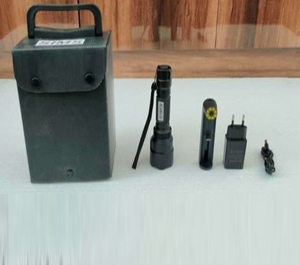

UV Light 100 BLT

Battery Operated Hand Held UV Torch with Single LED

Ultraviolet Light manufacturers in india

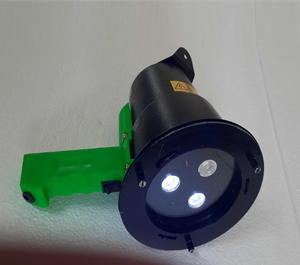

UV Light 100 BL

Battery Operated Hand Held UV Light with 2 LEDS & 1 White Light

Ultraviolet Light manufacturers in india

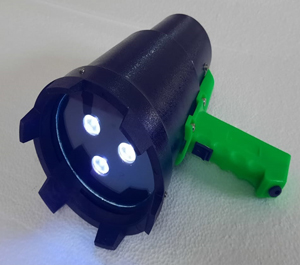

UV Light 100 BLH

Battery Operated Hand Held UV Light with 3 LEDS & 1 White LED

Ultraviolet Light manufacturers in india

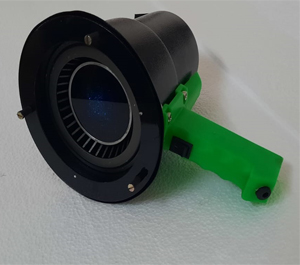

UV Light 100 BLB

Battery Operated Hand Held UV Light with LED Bulb

Ultraviolet Light manufacturers in india
