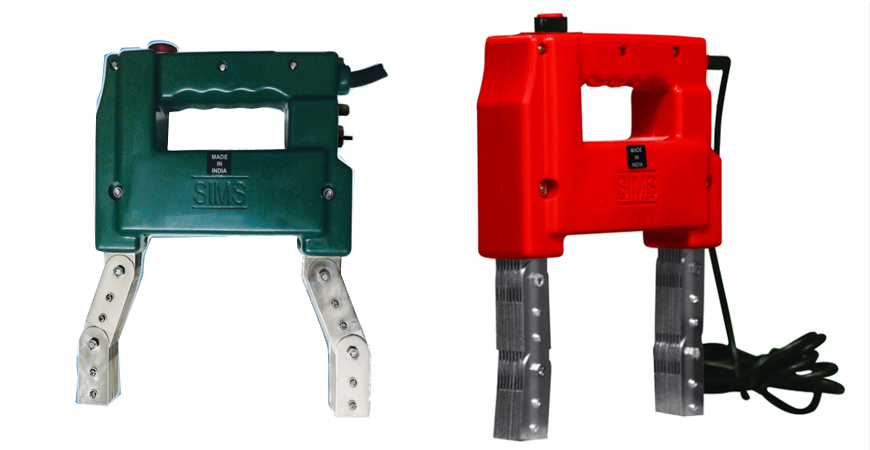

Dual Magnetization Y A/D model Yoke is a versatile portable Magnetic Particle Inspection tool. Flaws at the surface and sub-surface levels can be found by switching between AC and HWDC. Its twin jointed legs allow the equipment to be flexibly contoured to any shape, ensuring good contact. Its sturdy structure makes it convenient, light, and safe for operators to use for continuous inspection. It can be used to inspect various engineering components as well as welded joints.
Technical Specifications
- Pole Distance:
- 0 to 300mm
- Cord Length:
- 3 meters
- Input Supply:
- 220V, 50Hz, 1 Phase
- Max Current Drawn:
- AC - 2.2 Amps / HWDC - 2.5 Amps
- Yoke Weight:
- 4 kgs
- Controls:
- Solid State Control
Salient Features
- Portable handheld equipment for magnetic particle inspection
- Delivers AC for surface and HWDC for sub-surface flaw detection

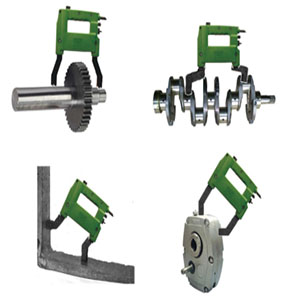

- Articulated and dou ble-jointed legs contour easily to any shape to assure good contact
- Handy and Light Weight, safe for Operators
- Strong and rugged construction for continuous Inspection
- Lifting Capa city - 27 Kgs in HWDC & 5 Kgs in AC mode.
