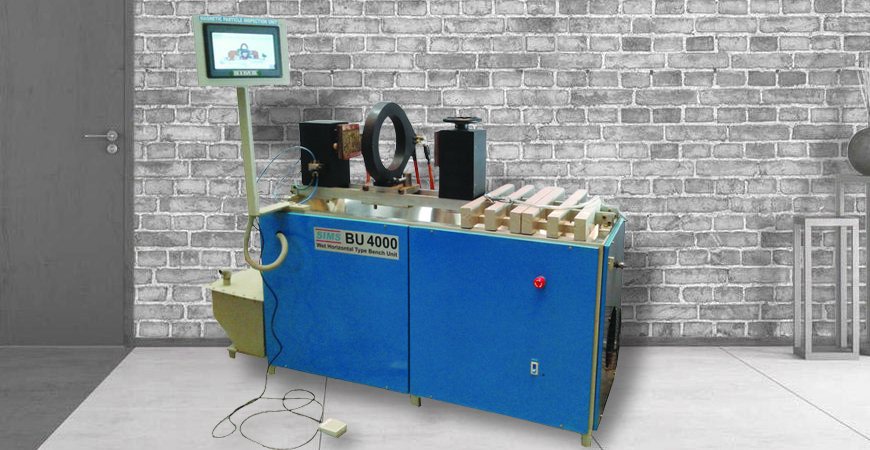

The Wet Horizontal MPI Unit is a highly efficient and reliable tool used in the field of inspection methods and systems. This unit is specifically designed to perform Magnetic Particle Inspection (MPI) on horizontal surfaces, ensuring accurate and thorough detection of surface and subsurface defects. With its advanced technology and precise control, this unit offers exceptional sensitivity and resolution, making it an ideal choice for industries such as aerospace, automotive, and manufacturing. Its wet method of inspection allows for enhanced detection capabilities, ensuring that even the smallest flaws are identified. The Wet Horizontal MPI Unit is a valuable asset for any inspection process, providing reliable and accurate results to ensure the highest quality standards are met.
Technical Specifications
| Specs | SIMS BU |
|---|---|
|
Input Supply: Volt Frequency Phase |
415 V 50 Hz 2 lines of 3 Phase |
| Max. Output Current | 2000-14000 Amps – AC / HWDC |
| Current Drawn | 25-300 Amps (intermittent) |
| Open Circuit Voltage | 12 - 18 V |
| Max. KVA Ratings | 10 - 100 KVA |
| Duty Cycle | 0.5 sec ON & 5 sec OFF |
| Longitudinal Magnetization through Coil of 300-450mm ID | 5 KAT thru Coil of 250-450mm ID |
| Class of Insulation | F’ Class |
| Current Control | Solid State Thyristor (step-less) |
| Reservoir Tank | SS Tank for Corrosion Resistance 25-30 Lts |
| Dimensions | Varies based on Job Length |
| Job Length (mm) | 100-2500 (user specific) |
| Air Pressure Required | 5 kg/cm2 (for pneumatic system) |
| Auxiliary Supply | 230V AC – 5A – Single Phase |
| Demagnetization | Automatic Current Decay Demag |
| Parameters Display | Current Readings - retained till next Shot |
| Dark Room | Black Hood |
| Turbulence Agitation | Longer Bath Life & Clearer Indications |
| Safety Features | Emergency Stop Button Over Load Protection Thermal Cut Off with additional cooling fan |
