Water Based Powders

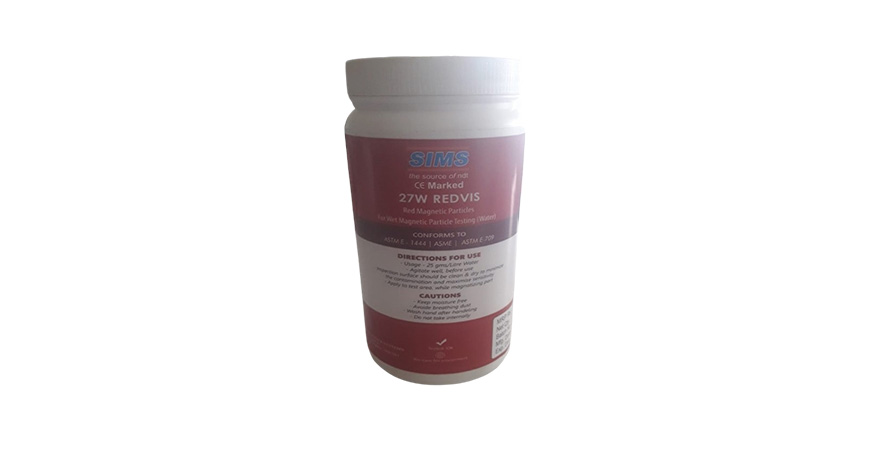

Red Water Based Powder

Single pack, Red Colored, Powder for wet application with necessary Wetting Agent, Defoaming Agent & Rust Inhibitor, In “Powder” form for Inspection in daylight. Suspension Medium Water, for crack detection by Magnetic Particle Inspection Method.

Technical Details:

  • • Colour : Red
  • • Net Content : 1 Kg.
  • • Recommended Concentration : 25 gm Per Ltr. of Water
  • • Settling Volume In 100 ml glass centrifuge tube after 60 minutes : 1.2 ml Approximate
  • • Particle Size : 90% Particles in the size range of 1 to 25 micron

Features:

  • • Chemical Nature: Non hazardous, Non-Toxic, Non-Corrosive Liquid.
  • • Shelf Life: The product will be suitable for its designated use till two (2) years from the date of manufacture, if stored well, and in packed condition as supplied.
  • • Sensitivity on Keto’s Tool Steel Ring, as per ASTM E 1444 Table No.X1.2, for 1400Amp HWDC: Numberof holes indicated is 5.( Required : 4 holes minimum)

Compliance Standard:

  • • ASTM E-709 : Standard Guide For Magnetic Particle Testing
  • • ASTM E-1444 : Standard Practice For Magnetic Particle Testing

Desirable Recommendations:

  • • Component surface should be pre-cleaned and free from oil / grease etc. at the time of use.

For Storage:

  • • Store in Dry, Cool, Shaded Area and at temperature less than 50℃.
  • • Replace the lid after every use

Safety:

  • • No special precaution is necessary.

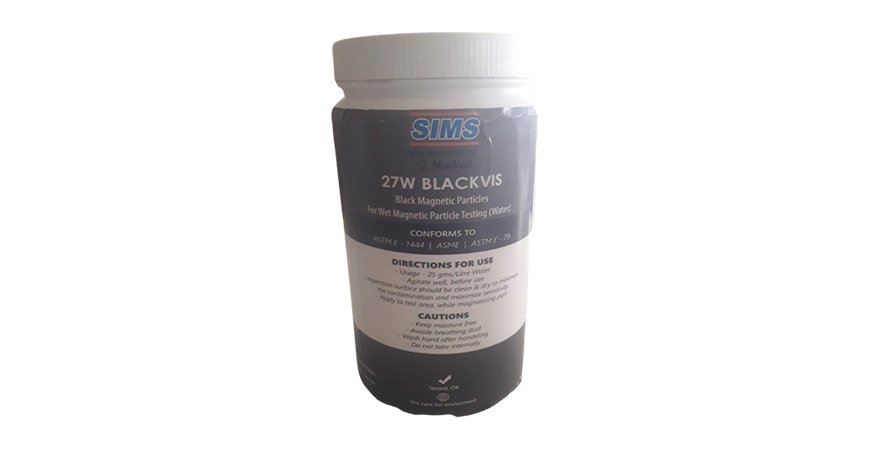

Black Water Based Powder

Single pack, Black Colored, Powder for wet application with necessary Wetting Agent, Defoaming Agent & Rust Inhibitor, In “Powder” form for Inspection in daylight. Suspension Medium Water, for crack detection by Magnetic Particle Inspection Method.

Technical Details:

  • • Colour : Black
  • • Net Content : 1 Kg.
  • • Weight : 1050 gm ( approximate) per Bottle
  • • Recommended Concentration : 25 gm Per Ltr. of Water
  • • Settling Volume In 100 ml glass centrifuge tube after 60 minutes : 1.2 ml Approximate
  • • Particle Size : 90% Particles in the size range of 1 to 25 micron

Features:

  • • Chemical Nature: Non hazardous, Non-Toxic, Non-Corrosive Liquid.
  • • Shelf Life: The product will be suitable for its designated use till two (2) years from the date of manufacture, if stored well, and in packed condition as supplied.
  • • Sensitivity on Keto’s Tool Steel Ring, as per ASTM E 1444 Table No.X1.2, for 1400Amp HWDC: Numberof holes indicated is 5.( Required : 4 holes minimum)

Compliance Standard:

  • • ASTM E-709 : Standard Guide For Magnetic Particle Testing
  • • ASTM E-1444 : Standard Practice For Magnetic Particle Testing

Desirable Recommendations:

  • • Component surface should be pre-cleaned and free from oil / grease etc. at the time of use.

For Storage:

  • • Store in Dry, Cool, Shaded Area and at temperature less than 50℃.
  • • Replace the lid after every use.

Safety:

  • • No special precaution is necessary.

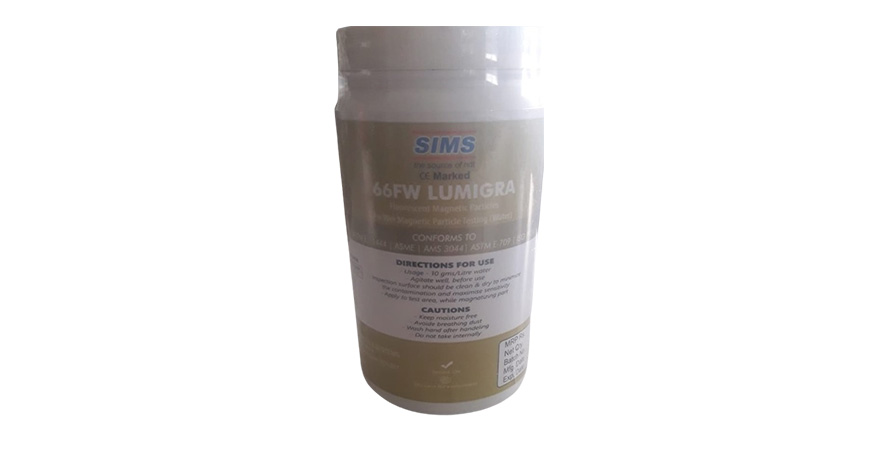

Fluorescent Water Based Powder

Fluorescent Yellow-Green colored, Powder Concentrate for wet application with necessary Wetting Agent, & Rust Inhibitor, in “Powder” form for Inspection under UVA light. Suspension Medium Water, for crack detection by Magnetic Particle Inspection Method.

Technical Details:

  • • Colour in day light: Green
  • • Colour under UVA Light: Fluorescent
  • • Net Content : 1 kg.
  • • Weight : 1050 gm ( approximate) per Bottle
  • • Recommended Concentration : 10 gm Per Ltr. of Water
  • • Settling Volume In 100 ml glass centrifuge tube after 30 minutes : 0.05 ml Approximate

Features:

  • • Chemical Nature: Non hazardous, Non-Toxic, Non-Corrosive Liquid.
  • • Shelf Life: The product will be suitable for its designated use till two (2) years from the date of manufacture, if stored well, and in packed condition as supplied.
  • • Sensitivity on Keto’s Tool Steel Ring, as per ASTM E 1444 Table No.X1.2, for 1400Amp HWDC: Numberof holes indicated is 6.( Required : 3 holes minimum)

Compliance Standard:

  • • ASTM E-709 : Standard Guide For Magnetic Particle Testing
  • • ASTM E-1444 : Standard Practice For Magnetic Particle Testing

Desirable Recommendations:

  • • Component surface should be pre-cleaned and free from oil / grease etc. at the time of use.
  • • Shaking the top surface of water, Pouring water into the bath from a distance. All are the reasons for foaming. This is because the surface agitates vigorously resulting in air getting trapped. However, if sufficient care is exercised foaming could be at its minimum. Maintaining a bath level to its highest position is a simple remedy to avoid formation of foam.
  • • The Inspection should be carried out in dark conditions (white light inside the dark area should be less than 20 Lux strength) with help of UVA Light of minimum intensity 1000 micro watt / sq. cm. at 15 inches from source.

For Storage:

  • • Store in Dry, Cool, Shaded Area and at temperature less than 50℃.
  • • Replace the lid after every use.

Safety:

  • • No special precaution is necessary.
