Magnetic Particle Inspection (MPI) is a widely used Non-Destructive Testing (NDT) method for detecting surface and near-surface defects in ferromagnetic materials such as carbon steel and iron. It is commonly applied in industries like fabrication, railways, automotive, aerospace, power plants, and heavy engineering to ensure component safety and reliability.
🔹 Principle of Magnetic Particle Inspection
MPI works on the principle of magnetic flux leakage. When a ferromagnetic component is magnetized, any surface or near-surface crack interrupts the magnetic field and causes leakage. When magnetic particles (dry powder or wet suspension) are applied, they gather at these leakage points, making defects clearly visible under normal or UV light.
🔹 Magnetic Particle Inspection Equipment (Under lined _ Create product links inside the blog)
Typical magnetic particle inspection equipment includes:

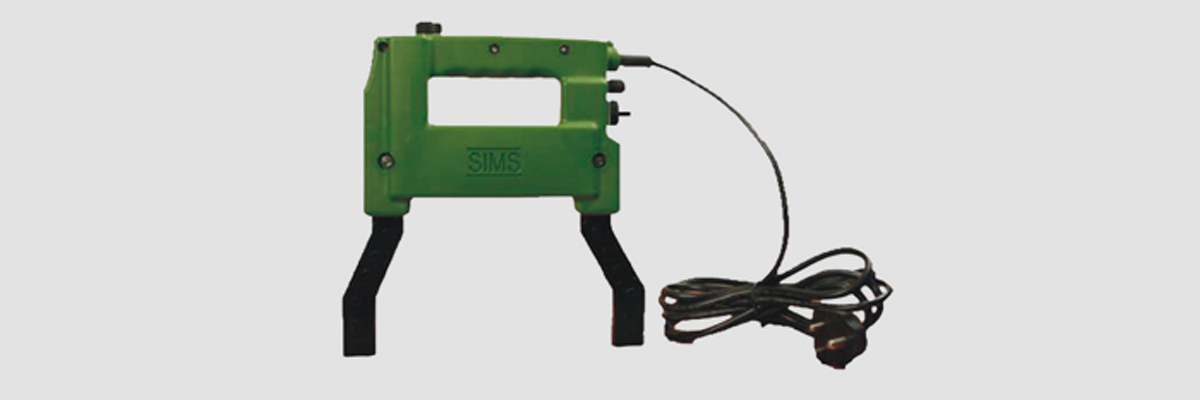

- Magnetic yokes (AC, DC, AC/DC, permanent & battery operated)
- MPI benches for batch inspection
- Magnetic particles (dry, wet, fluorescent)
- UV inspection lamps
- Pie gauges & field indicators
- Demagnetizers & gauss meters
🔹 Applications of MPI
Magnetic Particle Inspection is widely used for:
- Weld inspection
- Castings and forgings testing
- Shafts, gears, and pressure components
- Rail wheels, axles, and structural steel
- Automotive and aerospace parts

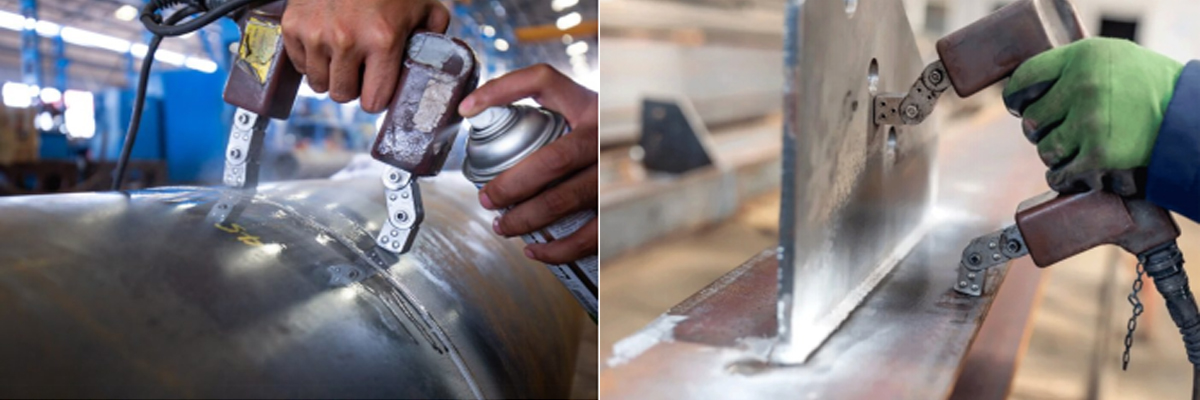

Images showing the usage of MPI equipment for crack detection:
Why Choose MPI?
- FAST Quick inspection & low cost
- ACCURATE High defect sensitivity
- PORTABLE Ideal for field testing
- EASY PREP Minimal surface cleaning
🔹 Conclusion
Magnetic Particle Inspection is a trusted and proven NDT method for ensuring structural integrity in critical components. With the right MPI testing method and magnetic particle inspection equipment, industries can achieve accurate defect detection and maintain high safety standards.
At Suvidha Inspection Methods & Systems (SIMS), with over 25 years of experience in the NDT industry, we understand the critical importance of reliable and accurate inspection solutions across diverse industrial environments. SIMS offers a comprehensive range of MPI equipment and accessories — including AC/DC yokes, permanent magnetic yokes, battery-operated units, MPI benches, magnetic particles (dry, wet & fluorescent), UV inspection lights, and metrology tools such as pie gauges and gauss meters. All our products are carefully selected and engineered to meet demanding field and workshop inspection requirements, ensuring consistent performance, regulatory compliance, and long-term operational reliability.
FAQ
❓ What is Magnetic Particle Inspection used for?
Magnetic Particle Inspection (MPI) is used to detect surface and near-surface defects such as cracks, laps, seams, and inclusions in ferromagnetic materials like steel and iron.
❓ What materials can be tested using MPI?
MPI can only be performed on ferromagnetic materials, including carbon steel, alloy steel, and cast iron. It cannot be used on aluminum, copper, or stainless steel (austenitic grades).
❓ What equipment is required for Magnetic Particle Testing?
MPI equipment includes magnetic yokes, MPI benches, magnetic particles (dry/wet/fluorescent), UV lamps, pie gauges, and demagnetizers, depending on the inspection application.
❓ What standards govern Magnetic Particle Inspection?
MPI is performed as per standards such as IS 3703, ASTM E709, ASTM E1444, and ISO 9934, which define inspection procedures, equipment requirements, and acceptance criteria.
